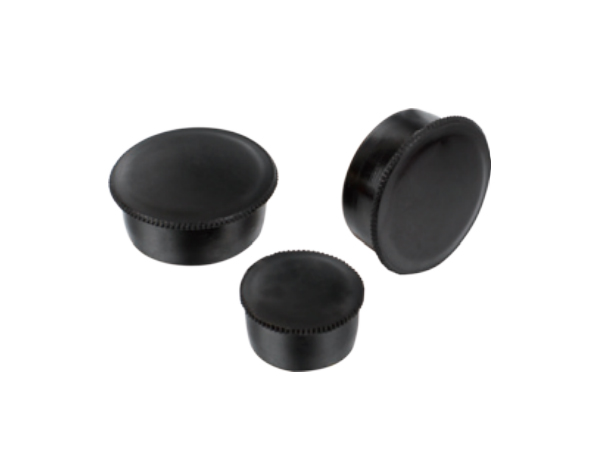

Product Name: Plugs Model Number: HY8330.3 Brand Name: Huayang Executive Standard: Material: Surfaced Process: Place of Origin: Zhejiang, China (Mainland)
Product specification

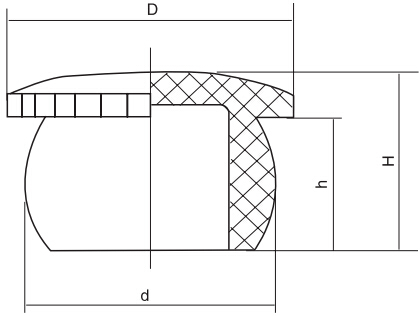

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | |||
| Plastic | d | D | H | h |
| HY8330.3\d=7 | 7 | 9 | 9.5 | 7 |
| HY8330.3\d=11 | 11 | 13 | 10 | 7.5 |
| HY8330.3\d=13 | 13 | 15 | 11 | 8.5 |
| HY8330.3\d=15 | 15 | 17 | 11 | 8.5 |
| HY8330.3\d=17 | 17 | 19 | 11 | 8.5 |
| HY8330.3\d=19 | 19 | 22 | 11 | 8.5 |
| HY8330.3\d=21 | 21 | 24 | 11 | 8.5 |
| HY8330.3\d=25 | 25 | 28 | 11 | 8.5 |
| HY8330.3\d=27 | 27 | 30 | 11 | 8.5 |
